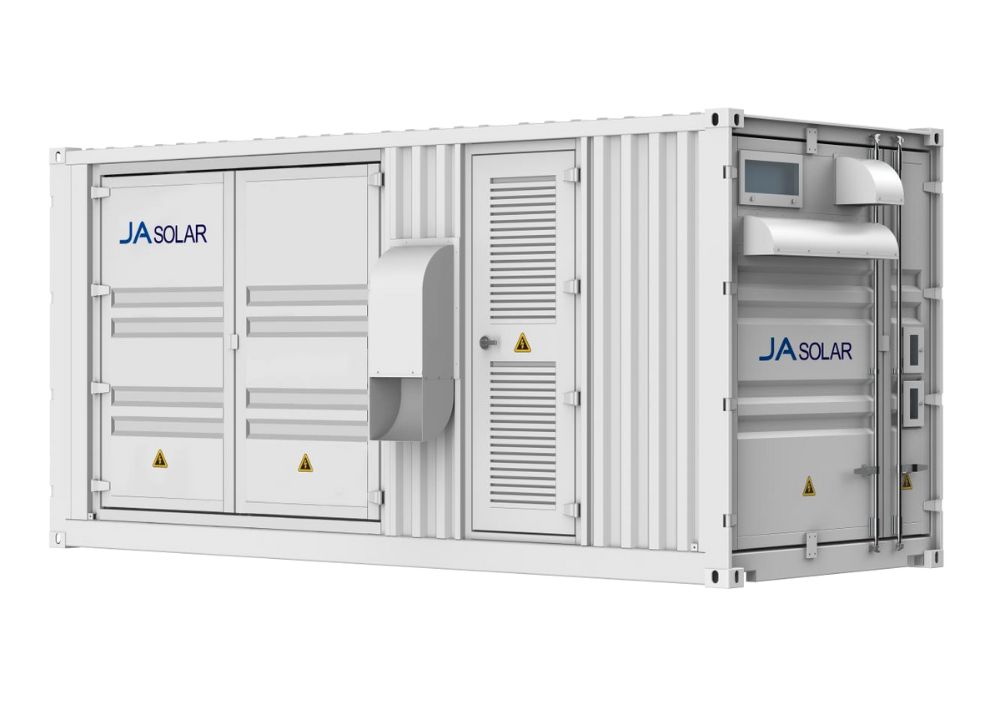

Safety & Reliability
- LFP battery cells for safety and extended lifespan
- Physical isolation between battery and electrical compartments contains thermal transmission
- Multi-source inputs/outputs (PV/Battery/DG/Grid/Load)
Flexibility & Compatibility
- Configurable operating modes for diverse scenarios
- Walk in access enables quick troubleshooting and maintenance
Intelligence & Efficiency
- Real time system monitoring with cloud connectivity
- Advanced battery management system and comprehensive thermal management

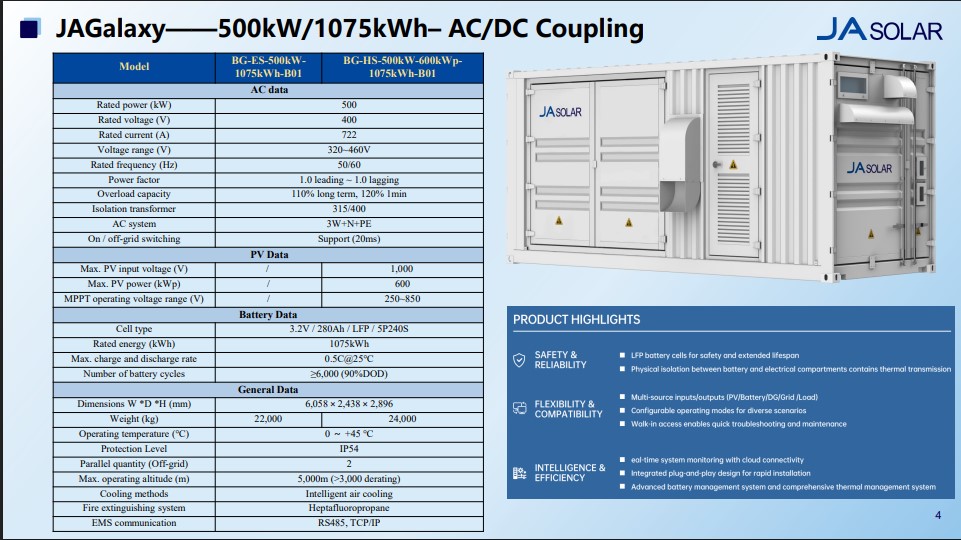

| Category |
Parameter |
BG-ES-500kW-1075kWh-B01 |
BG-HS-500kW-600kWp-1075kWh-B01 |
| AC Data |
Rated power (kW) |
500 |
500 |
| |
Rated voltage (V) |
400 |
400 |
| |
Rated current (A) |
722 |
722 |
| |
Voltage range (V) |
320~460V |
320~460V |
| |
Rated frequency (Hz) |
50/60 |
50/60 |
| |
Power factor |
1.0 leading ~ 1.0 lagging |
1.0 leading ~ 1.0 lagging |
| |
Overload capacity |
110% long term, 120% 1min |
110% long term, 120% 1min |
| |
Isolation transformer |
315/400 |
315/400 |
| |
AC system |
3W+N+PE |
3W+N+PE |
| |
On / off-grid switching |
Support (20ms) |
Support (20ms) |
| PV Data |
Max. PV input voltage (V) |
/ |
1,000 |
| |
Max. PV power (kWp) |
/ |
600 |
| |
MPPT operating voltage range (V) |
/ |
250~850 |
| Battery Data |
Cell type |
3.2V / 280Ah / LFP / 5P240S |
3.2V / 280Ah / LFP / 5P240S |
| |
Rated energy (kWh) |
1075kWh |
1075kWh |
| |
Max. charge and discharge rate |
0.5C@25℃ |
0.5C@25℃ |
| |
Number of battery cycles |
≥6,000 (90%DOD) |
≥6,000 (90%DOD) |
| General Data |
Dimensions W *D *H (mm) |
6,058 × 2,438 × 2,896 |
6,058 × 2,438 × 2,896 |
| |
Weight (kg) |
22,000 |
24,000 |
| |
Operating temperature (℃) |
0 ～+45 ℃ |
0 ～+45 ℃ |
| |
Protection Level |
IP54 |
IP54 |
| |
Parallel quantity (Off-grid) |
2 |
2 |
| |
Max. operating altitude (m) |
5,000m (>3,000 derating) |
5,000m (>3,000 derating) |
| |
Cooling methods |
Intelligent air cooling |
Intelligent air cooling |
| |
Fire extinguishing system |
Heptafluoropropane |
Heptafluoropropane |
| |
EMS communication |
RS485, TCP/IP |
RS485, TCP/IP |
