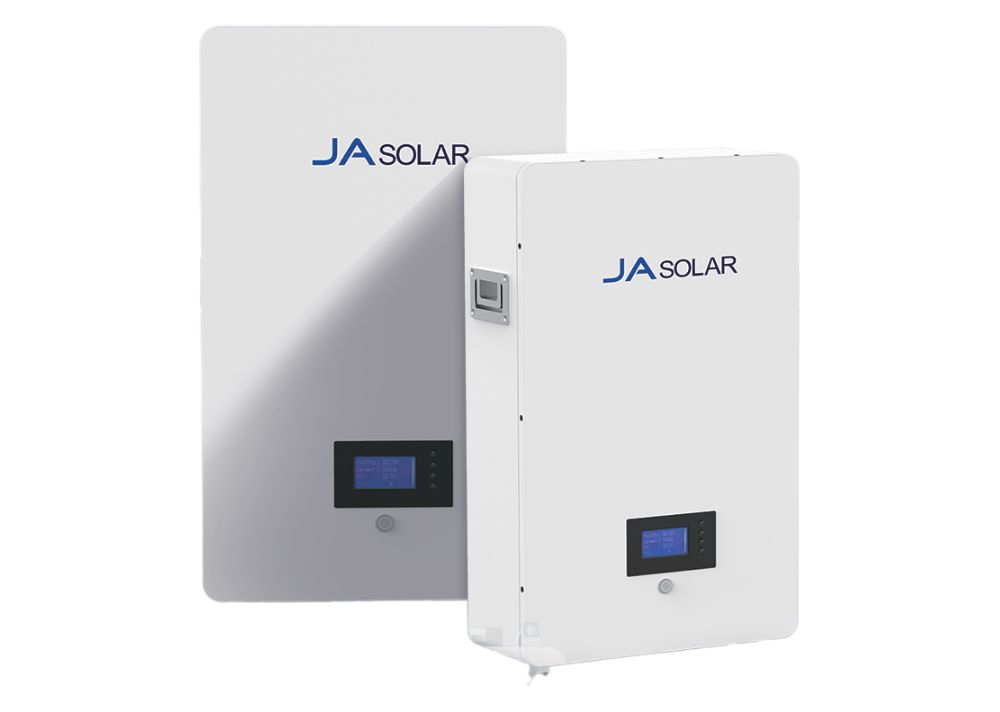

JAStar 5kWh Low Voltage Residential Battery Pack

JAStar 5kWh Low Voltage Residential Battery Pack


The add to cart button will appear once you select the values above

Product Highlights

  • Reliable battery designed with longer cycle life by using LFP battery cells
  • All-round safety protection, from LFP cell level to battery pack
  • Modular design, scalable up to 81.9kWh with 16 units in parallel
  • Wall-mounted or stackable on the floor, less installation time
  • Compatible with multiple brands of inverters, providing more choices
  • Visual interface operated by one click
Item Specifications
Model JAS-PAC-L-05H-B02
Rated Energy 5.12kWh
Rated Voltage 51.2VDC
System Configuration 1P16S
Working Voltage Range 42-58.4VDC
Battery Capacity 100Ah
Rated Charge/Discharge Current 50A@25±2℃
Max. Charge Current 100A@25±2℃
Max. Discharge Current 100A@25±2℃
Working Temperature Range 0-40℃ (Charge) -10-40℃ (Discharge)
Storage Temperature Range and Humidity -20℃~45 ℃ and 65%±20%RH
Humidity 5-80%
Altitude 0-3000m
Weight 46±3kg
Dimensions (L x W x H) 600368150.2mm
Cycle Life 6000 cycles 0.2C @25℃ 80% DOD
IP IP20
Communication CAN&RS485
Number of Parallel Max. 16 pcs
Certification CE, EN IEC61000-6-1/-3 and UN38.3
